Every battery abuse test begins as a test request. Our example customer wants a cell level nail penetration test at 100% state of charge, witnessed and reported.

That request decides everything downstream. It picks the bunker, the fixture, the standard revision and whether a witness travels or watches a stream. Labs that accept requests by email lose detail right here. An email says "nail test, full charge" and the technician charges to the cell maximum when the customer meant the BMS limited voltage their pack uses. The cell gets destroyed under the wrong condition and nobody notices until the report review.

A structured request form closes that gap before a single cell arrives. Capture 7 fields at intake: standard and revision, SOC definition, chemistry and format, quantity including spares, witness requirement, data deliverables and disposal instructions. Those 7 fields prevent more retests than any fixture upgrade.

Abuse testing competes for a short list of scarce resources. The bunker, the high speed camera rig, the gas analysis train and the technician cleared for hazardous work all have to line up on the same morning. A battery test chamber used for thermal ramp tests is often shared with the cycling team down the corridor.

Double booking in a battery testing lab carries a safety cost on top of the schedule cost. A rushed changeover between a thermal chamber test and an abuse run is when exhaust checks get skipped.

An independent battery and HV lab running cell and pack validation across 3 UK sites lived this problem. Chamber and bench availability sat in shared spreadsheets updated unevenly across teams, and double bookings were routine. After moving to equipment level scheduling in TITAN, with cyclers, HV benches, thermal chambers and motor rigs modelled as separate resources, the lab cut scheduling conflicts by more than 90%. Request to confirmation time dropped from 3 to 4 days to under 24 hours.

Thermocouples, voltage taps, the force transducer on the crush rig and the displacement sensor on the nail drive all carry calibration dates. If one has expired, the data is worthless and the cell is already gone. Battery abuse tests destroy the device under test. A rerun means a new cell, a new slot and often a new witness visit.

That same UK lab had kept calibration records for HV equipment, thermocouples and cyclers in a separate system with "no connection to the scheduling layer." Calibration status lived in one place. Bookings lived in another. Once calibration was tied to the equipment record that the scheduler reads, the lab recorded zero calibration lapses after go-live.

The principle is simple. A booking should refuse to confirm when any instrument on the test has an expired certificate. Leaving that check to a technician's memory at 7 a.m. invites the one miss that costs a full programme.

The safety hold is the formal pause before energy goes into the cell. A typical hold checklist for a nail penetration or crush test covers:

• Bunker clear with door interlocks tested
• Exhaust and scrubber running at rated flow
• Fire suppression armed and emergency stop verified
• Cell SOC measured at the fixture and matched to the request
• Thermocouple placement photographed against the test plan
• Camera triggers armed and gas sampling lines purged

Two conditions make a hold worth anything as evidence. A named person must release it. The release must carry a timestamp. A paper sheet initialed in pencil and filed in a binder meets neither condition once the binder goes missing.

Building the hold as a configurable checklist inside the test record gives every item an owner and a time. A failed item stops the workflow at that step, so the trigger cannot be armed with a purge line still closed.

Witness testing in battery safety work takes 2 forms. A customer engineer or notified body representative stands behind the blast glass, or watches a live stream from another continent. Either way the witness needs to see the same facts the report will later state.

Three habits make witnessed battery tests hold up under scrutiny. The technician reads the cell serial number aloud on camera. The SOC reading on the meter is shown to the lens before the door closes. The witness signs the pretest record before the trigger and signs the observation record after.

Remote witnessing adds one more duty. The stream recording itself becomes evidence and belongs in the test record with a hash or checksum, stored beside the raw data.

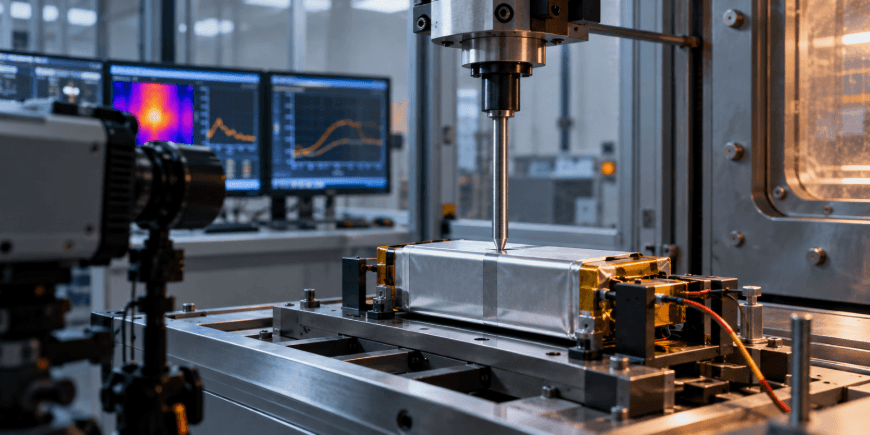

The nail enters. Cell voltage collapses. Surface temperature climbs. If the cell goes into thermal runaway, venting and flame can follow within seconds.

A single thermal runaway test feeds several acquisition systems at once. High speed video runs at thousands of frames per second. Thermocouples log at 10 Hz or faster. Voltage taps sample in kilohertz. Gas analyzers track CO, H2 and hydrocarbons. Each device keeps its own clock.

If the camera and the DAQ disagree by 2 seconds, the report cannot say whether venting came before or after the voltage drop. That sequence is often the entire finding. Fire a sync event at T zero, such as a trigger pulse recorded on every channel or a flash visible on every camera and log it in the test record.

The strict compliance calls for a 1 hour observation period after the abuse event. Damaged cells can reignite well beyond that. Labs move the remains to a labelled quarantine area, log the transfer and keep watching.

The disposal record closes the chain of custody for the device under test. Without it, the evidence pack has a gap at the end, and gaps attract questions during ISO/IEC 17025 assessments. Log who moved the cell, where it went and when the disposal vendor collected it.

Report assembly is where abuse labs quietly lose days. Before TITAN, the UK lab's engineers spent days pulling observations, cell statistics, thermal data and CAN logs out of disconnected systems and stitching them into a report by hand. With observation logging inside the test record and automated test report generation, reporting effort fell by about 45%.

A battery abuse test report that survives review states the standard and revision, every deviation from the method, the witness name and organization, the calibration certificate IDs for each instrument, pre and post test photographs and the synchronized timeline.

A recall investigation starts. A GB 38031 resubmission comes due. An accreditation assessor pulls a random record. The person reading the file was never in the room and cannot ask the technician, who may have left the company.

Every entry should be attributable and contemporaneous, showing who recorded it and when. Raw files, photos and video belong in one record linked to the request, the hold, the witness signatures, the calibration state and the disposal log.

The same discipline carries over to the cycling floor, where high volume cell, module and pack labs run hundreds of cells in parallel and every channel needs the same traceability.

The cell is gone the moment the nail goes in. Left behind are a request, a hold, a signature, a calibration certificate, a video file and a report. That bundle is the only version of the test anyone will ever see again.

Labs that win repeat abuse work build that bundle as carefully as they build the fixture. The battery and HV testing labs doing it best let the evidence assemble itself while the test runs.

Under regulations, a pass depends on proving that nothing happened. The only proof a lab can offer is a record that a stranger can open years later and trust. Labs that manage battery and HV testing in a single connected record capture each step as the work happens. They spend less time rebuilding reports and walk into assessments with a complete file.
